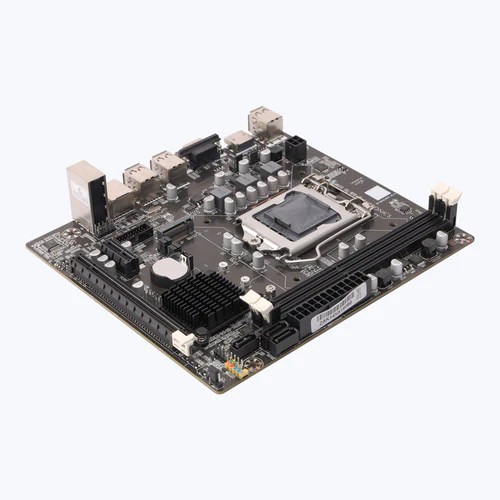

Zeb H61M2 – LGA 1155 Socket

Specifications

• Supported CPU Intel Pentium/Celeron/Core i3, i5, i7 Series Processors in LGA 1155
• Chipset Intel H61/H67
• Memory Supported 2nos DDR3 Dual channel RAM slots
  Memory up to 16GB
  Supports dual channel DDR3 1066/1333/1600MHz memory
• BIOS AMI BIOS
• I/O Interface 1 x HDMI port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio
• Onboard Interface 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector,
  6 x USB 2.0 Ports, 1 x Front Audio Connector, 1 x Front Panel Connector,
  1 x Speaker Connector, 2 x Fan Connectors, 3 x SATA II Ports,
  1 x 3pin CMOS Header, m.2 Slot
• Integrated Sound With 6-Channel HD Audio Codec onboard
• Integrated LAN Supports Realtek 8106E 10/100 Mbps
• Expansion Slot 1 x PCI Express 2.0 x16 size slot, 1 x PCI Express 2.0 x1 size slot
• Form Factor Micro-ATX
• Country of Origin People’s Republic of China

LEGAL METROLOGY PRODUCT INFORMATION

• Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu – 600 002, India
• Country of Origin: People’s Republic of China
• Generic Name: Zebronics Motherboard
• Customer Complaints: Telephone – 044-4000 0004 | Email – enquiry@zebronics.com
